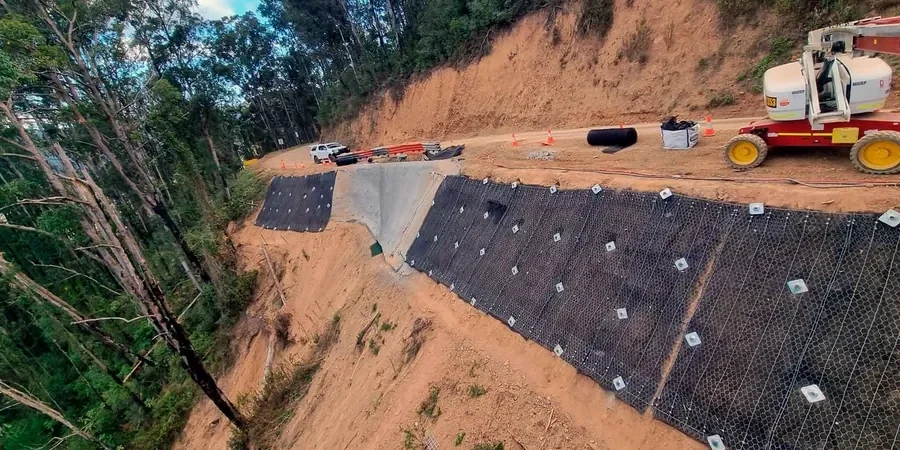

Slope Stability Analysis in Columbus Georgia: Geotechnical Expertise for the Chattahoochee Fall Line

When you walk a site along the Chattahoochee River or up toward the Piedmont uplands north of Columbus, the first tool our team deploys is often a track-mounted CPT rig or a hollow-stem auger drill. The Fall Line cuts right through the city, creating a dramatic transition from the crystalline rock of the Piedmont to the softer Coastal Plain sediments. This means a slope that looks stable on a Friday afternoon can start creeping after a heavy summer thunderstorm saturates the sandy silt veneer. We combine subsurface exploration with in-situ permeability testing to understand how water moves through these transitional soils before we ever open a limit equilibrium model. It is the kind of layered investigation that separates a desktop study from an actionable design.

A slope does not fail because the soil is weak; it fails because water finds a path the designer did not model.

Process overview

We recently completed an investigation for a church expansion on a hillside off Veterans Parkway where a 35-foot cut was planned into a slope mantled with mica-rich silty sand—a classic product of the local schist and gneiss weathering. The geophysical profile from a MASW survey showed a sharp velocity contrast at about 12 feet depth, which matched the refusal depth we hit with the dynamic cone. That interface turned out to be partially weathered rock with a relic foliation dipping out of the slope at 22 degrees. We ran a series of limit equilibrium analyses using Spencer's method, iterating the phreatic surface position to simulate the 100-year storm event. The final design incorporated a bench at mid-height and a row of soil nails to pin the upper block. This kind of integrated approach—geophysics, drilling, lab testing, and numerical modeling—is what the complex Fall Line geology demands.

Local context

The contrast between a project in the historic Midtown district and one out near the developing tracts of North Columbus is stark. Midtown sits on deeply weathered Piedmont residuum; the soil profile can hold a near-vertical cut for days until a rain event triggers a shallow slough. Ten miles north, where development pushes into steeper terrain with more competent but fractured rock, the failure mode shifts to wedge sliding along relict joints. In our experience, the biggest risk in Columbus is not the steepest slope—it is the one with a thin layer of colluvium draped over a slick, weathered rock interface. A triaxial test on an undisturbed Shelby tube sample from that interface gives us the drained friction angle we need to avoid a nasty surprise during grading.

Technical parameters

Parameter	Typical value
Analysis Methods	Limit Equilibrium (Spencer, Morgenstern-Price), Finite Element (SSR)
Failure Modes Evaluated	Circular, block sliding, wedge, compound, infinite slope
Seismic Coefficient (kh)	Per IBC 2021 and site-specific PSHA, typically 0.08–0.15g
Minimum Factor of Safety (Static)	1.5 (long-term), 1.3 (temporary cut)
Minimum Factor of Safety (Seismic)	1.1 per ASCE 7-22 Section 11.8
Pore Pressure Models	Steady-state seepage, transient infiltration (2D FEM)
Reinforcement Design	Soil nails, tieback anchors, MSE walls, rock dowels
Key Laboratory Tests	Consolidated-drained triaxial (ASTM D7181), ring shear for residual strength

Additional services

Geotechnical Drilling and Sampling

Hollow-stem auger and rotary core drilling to penetrate Piedmont residuum and recover undisturbed samples from critical failure surfaces.

Geophysical Profiling

MASW and electrical resistivity to map bedrock depth and seepage zones without the disturbance of heavy drilling across steep terrain.

Advanced Laboratory Testing

Drained triaxial and ring shear tests to define peak and residual strength parameters for the mica-rich soils common in the Fall Line region.

Numerical Analysis and Design

2D and 3D limit equilibrium and finite element modeling to optimize reinforcement layouts and bench configurations for challenging site access.

Reference standards

ASCE 7-22 Minimum Design Loads and Associated Criteria for Buildings and Other Structures, IBC 2021 (International Building Code) Chapter 18: Soils and Foundations, ASTM D7181-20 Standard Test Method for Consolidated Drained Triaxial Compression Test for Soils, FHWA-NHI-05-123 Soil Slope and Embankment Design (Reference Manual), NCEER/NSF (Youd & Idriss, 2001) Liquefaction Resistance of Soils: Summary Report

FAQ

How much does a slope stability analysis typically cost for a site in Columbus?

For a single-family lot or a small commercial site in Columbus, a slope stability analysis generally ranges from US$1,350 to US$3,920. The final fee depends on whether we need a drill rig access, the number of laboratory tests required to define the failure envelope, and the complexity of the geometry we have to model. A deep-seated slide analysis with multiple cross-sections and a finite element seepage model will be on the higher end of that range.

What triggers a slope failure in the Columbus Fall Line area?

The most common trigger we see is rapid infiltration during intense summer thunderstorms that saturate the shallow colluvial layer over the weathered rock interface. We also encounter failures caused by poor surface drainage control during construction, where concentrated runoff erodes the toe of a slope and unloads the resisting mass.

Do you need to drill borings for every slope stability analysis?

Not always for a preliminary desktop study, but for a final design we almost always need to calibrate the subsurface model with physical borings or test pits. The transition zone between residual soil and partially weathered rock in this part of Georgia is highly variable over short distances, and a CPT or a hollow-stem auger boring gives us the stratigraphic control we need to avoid underestimating the failure potential.

How long does a typical analysis take from field work to final report?

A routine single-slope analysis can be turned around in three to four weeks. The field program takes a few days, consolidated-drained triaxial tests require about two weeks for proper saturation and shear, and the modeling and reporting phase occupies the final week if the geometry is straightforward.
