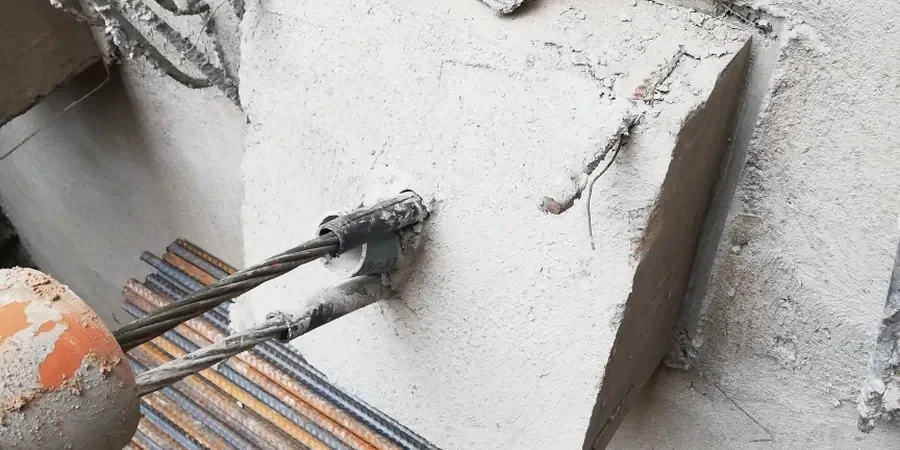

Active and Passive Anchor Design in Columbus Georgia

Columbus owes its trajectory to the Chattahoochee River. The mills that powered the city’s rise left behind a legacy of dense urban fill and steep riverbank cuts that make anchoring essential for modern development. The valley’s Piedmont residual soils—silty sands, micaceous silts, and partially weathered schist—demand a design approach that distinguishes active anchors, stressed to lock off load before excavation proceeds, from passive anchors that engage only as the retained mass begins to move. The team applies site-specific data from spt-drilling to calibrate bond lengths in the saprolite zone, where strength can drop sharply across a few vertical feet. For projects near the river, where the water table sits shallow, a resistivity survey often precedes anchor layout to map seepage paths that shorten grout set time. The goal is a tieback system that works with the ground, not against it.

In Columbus’s Piedmont residual profile, bond zone classification matters more than anchor capacity on paper.

Process overview

A recent excavation on Veterans Parkway illustrates the difference. The general contractor needed to open a 22-foot cut adjacent to an active power substation, with zero tolerance for movement. Active strand anchors were installed at 15 degrees, each tensioned to 80 percent of design lock-off load before the next lift was excavated. The upper 12 feet passed through stiff silty sand with mica; bond length there was de-rated by 25 percent based on index testing from atterberg-limits and grain-size distribution, which confirmed low plasticity and high silt content. Below that, the anchor entered sound schist, where the grout-to-ground bond jumped by a factor of three. Rather than uniform spacing, the layout staggered anchor length to follow the dipping rock surface mapped from probe holes. The design borrowed from FHWA GEC No. 4 for the load-transfer curves and used a stiffness-based analysis to predict wall deflection within 3 mm of what was later measured. Active anchors controlled the upper block; passive rock dowels stabilized the toe. The distinction between the two mechanisms was not academic—it was what kept the substation online throughout the work.

Local context

The Chattahoochee’s humid subtropical rhythm—dry autumns followed by intense spring downpours—creates a seasonal seesaw in pore pressure that can unload passive anchors in the weathered mantle. A design that holds during a dry October may show creep by April if the fixed length was sized without accounting for saturation-driven strength loss. Columbus sits on the Fall Line, where crystalline basement rock plunges south beneath the Coastal Plain, so anchor bond zones often cross a transition from saprolite into partially weathered rock within a single drill hole. Misjudging that interface leads to progressive debonding that is difficult to detect until wall deflection shows up on the inclinometer. The team runs load tests—both performance and proof—on sacrificial anchors early in the program, per PTI DC35.1 recommendations, extending the test duration when residual soils are micaceous. A short anchor that fails slowly is far more dangerous than one that fails fast, because it erodes redundancy without triggering alarms.

Technical parameters

Parameter	Typical value
Anchor type	Active (pre-stressed strand) and passive (grouted bar)
Design standard	PTI DC35.1, FHWA GEC No. 4, AASHTO LRFD Bridge Design
Typical bond length in saprolite	20 to 35 ft depending on SPT N-value and mica content
Lock-off load (active anchors)	70–85% of design load, verified by lift-off test
Corrosion protection	Class I (encapsulated) per PTI for permanent anchors in fill
Load test protocol	Performance test (cyclic), proof test, creep test per PTI
Typical anchor capacity range	50 to 250 kip for strand anchors in Piedmont profile

Additional services

Active Tieback Design for Deep Excavations

Complete design of pre-stressed strand anchors for soldier pile and secant walls, including bond length calculation, lock-off sequence, and staged excavation modeling. Load-transfer curves are built from site-specific soil parameters, not generic tables.

Passive Anchor and Rock Dowel Systems

Design of fully grouted passive bars for retaining walls, bridge abutments, and slope stabilization where movement must be tolerated. Includes shear key detailing and corrosion protection per PTI Class I or II for Piedmont residual soils.

Anchor Load Testing and Verification

Performance, proof, and extended creep tests executed with hydraulic center-hole jacks and digital loggers. Every anchor is lift-off tested to confirm lock-off load. Reports include load-displacement curves and commentary on bond zone behavior.

Reference standards

PTI DC35.1-14 Recommendations for Prestressed Rock and Soil Anchors, FHWA GEC No. 4 Ground Anchors and Anchored Systems, AASHTO LRFD Bridge Design Specifications, Section 11, ASCE 7-22 Minimum Design Loads for Buildings, IBC 2021 Chapter 18 Soils and Foundations, ASTM A416 Low-Relaxation Seven-Wire Steel Strand

FAQ

What is the difference between active and passive ground anchors?

Active anchors are pre-stressed after installation and locked off at a fraction of the design load before excavation advances; they actively restrain the wall from the start. Passive anchors are not tensioned—they develop resistance only when the retained ground deforms enough to engage the grout-to-soil bond, making them suitable for rock dowels and situations where some movement is acceptable.

How do Piedmont residual soils affect anchor bond capacity?

The saprolite common in Columbus can retain the fabric of the parent schist but loses strength rapidly when disturbed or saturated. Micaceous silts present a particularly low grout-to-ground bond. We de-rate bond values based on SPT N-values and Atterberg limits, and extend creep test durations when mica content is high to identify time-dependent movement early.

What load tests are required for permanent anchors in Georgia?

PTI DC35.1 recommends performance tests on at least two sacrificial anchors per soil zone to validate design bond, proof tests on production anchors to confirm capacity, and creep tests when anchors are founded in fine-grained or micaceous soils. We follow the PTI acceptance criteria for total movement and creep rate, documenting every test with calibrated load cells and digital displacement transducers.

What is the typical cost range for anchor design and testing in Columbus?

Anchor design and testing in the Columbus area typically ranges from $1,010 to $4,330, depending on the number of anchors, the complexity of the soil profile, and the extent of load testing required. A project with multiple soil zones and sacrificial performance tests will fall at the higher end of the range.
