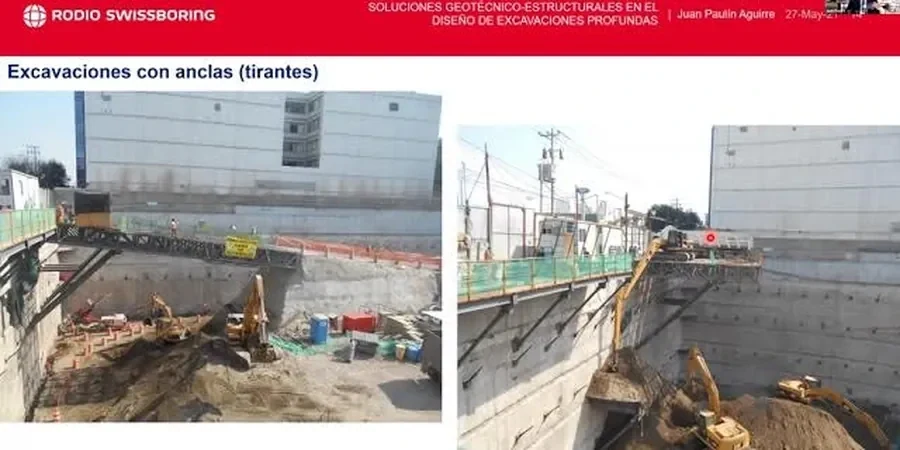

Geotechnical Design of Deep Excavations in Columbus GA

A 4-story mixed-use building near the Chattahoochee Riverwalk ran into weathered mica schist at 18 feet. The contractor expected residual clay. The cut exposed seamy rock dipping toward the street. We mobilized the drill rig within 48 hours to refine the excavation support design. Columbus sits squarely on the Fall Line—the boundary between Piedmont metamorphic rock and Coastal Plain sediments. This means a single deep excavation can transition from hard saprolite to loose sand in under 30 vertical feet. Our lab runs classification tests on every change of strata to feed shoring pressure diagrams. We pair SPT drilling with triaxial testing where saturated silts appear near the Chattahoochee floodplain. The numbers drive soldier pile spacing and waler sizing, not assumptions.

Columbus deep cuts through the Fall Line transition demand lab-measured shear strength, not SPT correlations alone.

Process overview

The core of a Columbus excavation design passes through our direct shear box and triaxial cells before any shoring drawing leaves the office. We extract undisturbed Shelby tube samples from the excavation perimeter and run consolidated-undrained triaxials at confining pressures matching the proposed cut depth. For cuts exceeding 15 feet, we run in-situ permeability tests to quantify inflow risk—critical near the river terraces where old channel deposits create perched water. The lab then computes apparent earth pressure envelopes using FHWA methods, adjusting for the stiff residual soils common east of Veterans Parkway. We also run Atterberg limits on every sample to confirm the plasticity range used in lateral squeeze checks. The output is a set of ground reaction curves and bending moment envelopes that go directly to the structural engineer. No generic K_a values. No borrowed parameters. We also reference slope stability analyses when the excavation face must stand open during phased construction.

Local context

Columbus grew along the river terraces and gridded out over Piedmont foothills. That growth left a patchwork of old fill, buried infrastructure, and variable rockhead. Deep excavations in the historic district routinely uncover 19th-century brick rubble or abandoned utility corridors. The biggest risk is differential movement caused by anisotropic stiffness—saprolite on one side of the cut, Coastal Plain sand on the other. Our lab quantifies stiffness degradation through strain-controlled triaxial paths, then feeds those moduli into a finite-element model of the excavation sequence. A cut that ignores this anisotropy can rack the adjacent building within the first week of dewatering. We also check basal heave potential using Bjerrum and Eide's method where soft clay lenses appear below the subgrade.

Technical parameters

Parameter	Typical value
Triaxial type	CIU or CAU per ASTM D4767
Apparent earth pressure method	FHWA hinged / fixed condition envelopes
Sample quality for strength tests	Shelby tube, ASTM D1587
Permeability assessment	Falling-head in borehole, ASTM D6391
Rock strength (saprolite)	Point load index, ASTM D5731
Soil classification	USCS per ASTM D2487
Water level monitoring	Vibrating-wire piezometer, 0.5 psi resolution

Additional services

Shoring Design Parameters

Triaxial compression and direct shear tests on undisturbed samples to define friction angle, cohesion, and stiffness for soldier pile and lagging design.

Dewatering and Seepage Analysis

In-situ permeability testing and grain-size distribution to size well points, sumps, or deep wells for cuts below the water table.

Basal Stability Checks

Undrained shear strength profiling and heave calculations for wide excavations in soft layers, following FHWA and NAVFAC procedures.

Adjacent Structure Protection

Ground movement prediction using lab-derived modulus values, with settlement influence diagrams for buildings within the zone of influence.

FAQ

What lab tests does a deep excavation design in Columbus Georgia require?

At minimum we run consolidated-undrained triaxial tests on Shelby tube samples from the excavation depth range, plus Atterberg limits and grain-size distribution on every distinct stratum. If the cut goes below the water table, we add in-situ permeability tests. For rock or saprolite, point load index tests give us the strength input for the shoring design.

How do you handle the Fall Line geology in excavation design?

We sample at close vertical intervals—typically every 5 feet—to catch the transition from Piedmont residual soil to Coastal Plain sediments. Each sample gets USCS classification and strength testing. The resulting profile drives a layered earth pressure model rather than a single homogeneous assumption.

What is the typical cost range for a deep excavation design study in Columbus?

For a complete package—drilling, undisturbed sampling, triaxial and direct shear testing, permeability assessment, and the shoring analysis—the cost generally falls between $2,210 and $9,030 depending on the cut depth, number of borings, and how many strata need strength testing.

Do you provide the shoring drawings or just the parameters?

We provide the geotechnical design parameters—earth pressure envelopes, soil stiffness profiles, and groundwater recommendations. The structural engineer uses these to produce the shoring drawings. We can review the final design for geotechnical consistency if needed.
