In-Situ Permeability Testing (Lefranc & Lugeon) in Columbus GA

The soil conditions between the rolling hills of North Columbus near Green Island and the river-bottom sediments in the Historic District down by the Chattahoochee can't be treated the same way. One site drains freely through decomposed granite residual soils, while the other holds water in alluvial silts that complicate any excavation deeper than ten feet. That difference dictates everything about dewatering design, cutoff wall depth, and foundation drainage around here. A field permeability test using the Lefranc or Lugeon method gives you real numbers—not textbook guesses—so your engineer can size pumps correctly and avoid flooded footings. For fractured rock in the Piedmont geology under Phenix City, we often pair permeability data with grouting estimates to lock in a watertight excavation plan before the first bucket hits the ground.

Textbook permeability values don't account for the fractured mica schist seams that run through Columbus—field testing catches what the lab can't.

Process overview

Around the Columbus Riverwalk expansion projects, we've noticed contractors often assume the compacted sandy clays are practically impermeable until they hit a weathered rock seam that changes the whole water inflow picture. That's where a Lefranc test in soil or a Lugeon test in rock earns its keep. The Lefranc method uses a simple borehole setup with a sealed section and constant or falling head measurement—straightforward, reliable, and covered under ASTM D6391 for granular and fine-grained soils. The Lugeon test applies stepped pressure stages in rock to map fracture conductivity; we run it per the Houlsby interpretation method, which correlates directly to grout take estimates. Both tests plug right into your geotechnical model and give the design team actual hydraulic conductivity values instead of broad ranges from grain-size correlations.

Local context

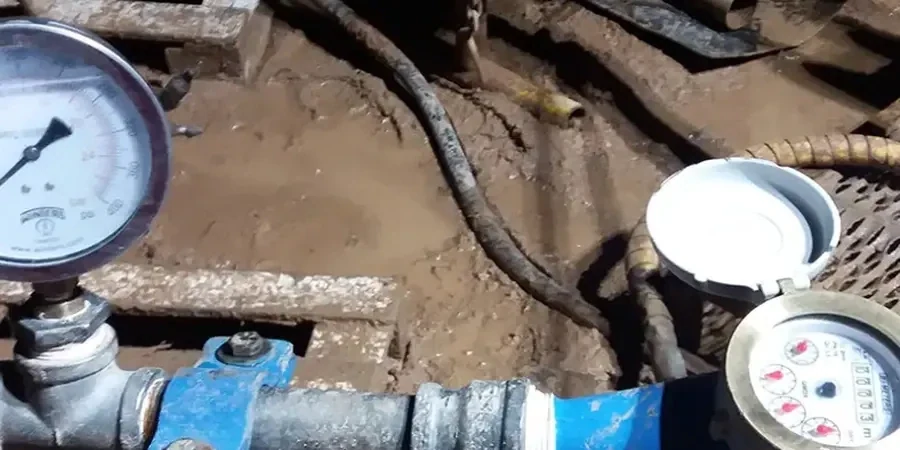

The tooling itself is simple: a pneumatic packer assembly, pressure transducer downhole, and a calibrated flowmeter at the surface—but it's the interpretation where things go sideways if done by someone unfamiliar with Piedmont hydrogeology. A sloppy seal around the packer lets water bypass the test zone, giving you a falsely high permeability reading that leads to oversized dewatering systems and wasted budget. In rock, running the Lugeon pressure stages too fast without letting flow stabilize at each step masks the difference between laminar flow through tight fractures and turbulent washout in open joints. Our crew runs every test until steady-state flow is confirmed, and we overlay the data with the site's slope stability model when the excavation is within the influence zone of an existing levee or riverbank.

Technical parameters

Parameter	Typical value
Test methods available	Lefranc (constant/falling head), Lugeon (packer test)
Applicable materials	Soil, weathered rock, fractured bedrock
Measurement range (soil)	1x10⁻⁴ to 1x10⁻⁷ cm/s typical
Lugeon pressure stages	5-stage cycle (Houlsby method standard)
Reporting standard	ASTM D6391, USBR 6510, USACE EM 1110-2-1901
Borehole diameter	NX to 6-inch depending on formation stability
Test depth capability	Up to 200 ft with wireline packer assembly

Additional services

Lefranc Permeability Testing in Overburden

Constant-head and falling-head tests executed in soil boreholes using a sealed injection section. We provide k-values with full time-drawdown curves, temperature correction, and shape factor calculation per standard boundary conditions.

Lugeon Packer Testing in Bedrock

Multi-stage pressure testing in rock with pneumatic packer isolation. Data reported in Lugeon units with Houlsby interpretation, including flow-versus-pressure plots that identify fracture flow regime and guide grouting decisions for dams and deep shafts.

FAQ

When is a Lefranc test required instead of a lab permeability test?

Lab tests on small samples miss the effect of fractures, fissures, and macro-scale heterogeneities that control real groundwater flow. A Lefranc test measures the bulk hydraulic conductivity of the soil mass in place, which is what dewatering and seepage models actually need. Regulatory agencies in Georgia typically require field permeability data for dam safety reviews and for any excavation that extends below the water table near the Chattahoochee.

What does a Lugeon test tell me that a Lefranc test won't?

The Lugeon test is specifically designed for fractured rock. By applying stepped pressure stages and measuring the flow response, you can distinguish between tight rock with laminar flow, dilating fractures that open under pressure, and washout conditions where fractures erode. That behavior directly affects grout volume estimates and cutoff wall design—information a soil-focused Lefranc test simply cannot provide.

How much does a field permeability test cost in the Columbus area?

For a standard Lefranc or Lugeon test program around Columbus, pricing typically falls between US$560 and US$1,020 per test interval, depending on depth, access conditions, and whether we're mobilizing to a prepared borehole or handling drilling as part of the package. Multi-test programs get a reduced per-test rate.

How long does it take to get test results?

The field work for a single test interval usually runs two to four hours, including setup, saturation, and multiple steady-state readings. We submit draft k-values within 24 hours so the design team can move forward, with the full signed report including pressure plots and shape factor calculations delivered inside of three business days.
