Stone Column Design for Columbus Georgia Soils

A warehouse expansion near the Chattahoochee River hit refusal at 45 feet with standard footings. The soil profile showed 20 feet of soft alluvium overlying partially weathered schist. Changing to a deep foundation would have delayed the project by months. The alternative that moved the project forward was a stone column design. Columbus sits on the Fall Line, creating abrupt transitions between Piedmont residual soils and Coastal Plain sediments. This geology means a site on Veterans Parkway may need a completely different ground improvement approach than one near Flat Rock Park. For these variable conditions, stone column design provides a controlled method to stiffen the ground, accelerate consolidation, and reduce settlement without excavation and replacement.

A stone column design on the Fall Line must handle two different soil behaviors within the same site — one column may bear on rock while the next floats in alluvium 20 feet away.

Process overview

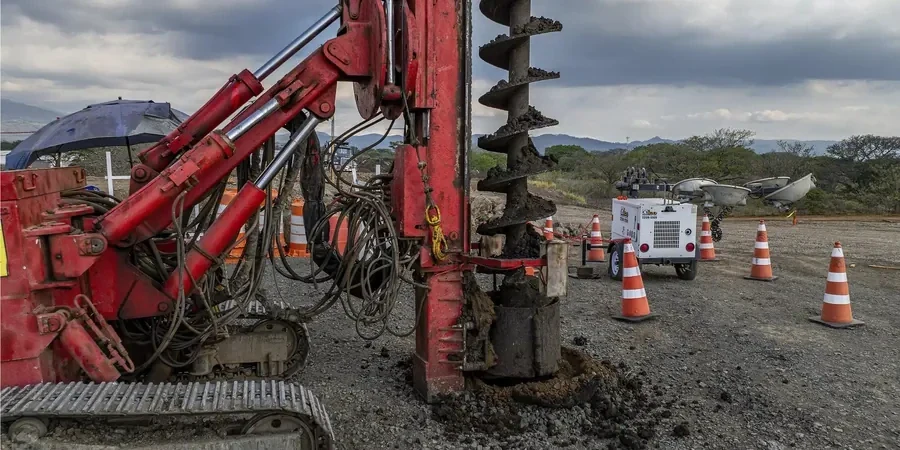

The contrast between north Columbus and the southern river corridor defines local geotechnical work. North of Macon Road, residual silty sands and partially weathered rock often provide adequate bearing with minimal treatment. South toward the Chattahoochee, thick alluvial deposits and high groundwater create compressible profiles where stone column design becomes the primary foundation solution. Our team runs CPT testing to map the soft zones continuously and identify the depth to competent bearing strata. The CPT data feeds directly into the column layout, length, and diameter calculations. We also cross-check the results with SPT drilling where gravel content might affect cone refusal. Stone columns in Columbus typically range from 30 to 60 feet deep, installed by vibro-replacement with bottom-feed equipment to keep the hole open in saturated sandy silts. Column spacing and diameter are tuned to achieve a target improvement ratio, verified by post-installation modulus tests.

Local context

Columbus sits at 243 feet elevation along a river that has flooded repeatedly since records began in the 1840s. Soft soil profiles along the Chattahoochee corridor combine high groundwater, low bearing capacity, and moderate seismic hazard from the Eastern Tennessee Seismic Zone. The USGS seismic hazard maps assign the Columbus area a peak ground acceleration around 0.10 to 0.15g for a 2,475-year return. That is enough to trigger liquefaction in loose saturated sands if they are not treated. Stone column design addresses this by densifying the surrounding soil during column installation and providing drainage paths that dissipate pore pressure during shaking. Omitting ground improvement on a compressible site leads to differential settlement that appears within the first two years of operation, cracking slabs-on-grade and pulling apart utility connections.

Technical parameters

Parameter	Typical value
Typical column depth in Columbus alluvium	30 to 60 ft
Column diameter range	24 to 42 in
Area replacement ratio (target)	10 to 35 percent
Post-treatment bearing capacity increase	2x to 4x untreated
Settlement reduction achievable	50 to 80 percent
Applicable soil types (USCS)	ML, CL, CH, SM, SP-SM
Installation method	Wet or dry bottom-feed vibro-replacement
Quality control test	Modulus test, CPT post-installation

Additional services

Feasibility and Preliminary Design

Review of geotechnical data, load requirements, and settlement tolerances. We run column spacing and length calculations using Priebe or finite element methods to confirm that stone columns are the right solution before mobilizing equipment.

Installation QA and Post-Treatment Verification

On-site monitoring during vibro-replacement installation with recording of depth, amperage, and stone take per column. Post-installation CPT or modulus tests at 1 to 3 percent of column locations confirm the design improvement ratio was achieved.

FAQ

What soil conditions in Columbus make stone columns a good choice?

Stone columns work well in the soft alluvial clays and loose silty sands found south of the Fall Line along the Chattahoochee River corridor. They are effective where the untreated SPT N-value is below 8 blows per foot and the groundwater table is within 10 feet of the surface. Sites with thick compressible layers that would settle excessively under structural loads are prime candidates.

How do you verify that the stone columns are performing as designed?

Post-installation testing includes CPT soundings through the treated zone to measure tip resistance and sleeve friction improvement, along with modulus load tests on selected columns. We compare the results to the design target values for the area replacement ratio and modulus. The test program typically covers 1 to 3 percent of installed columns, per FHWA guidelines.

How long does a stone column design and installation take for a typical Columbus commercial site?

For a site of 20,000 to 40,000 square feet with columns to 40 feet depth, the design phase takes about two weeks after receiving the geotechnical report. Installation by a single rig typically runs 10 to 15 working days, depending on access and weather. Post-treatment verification testing adds another 3 to 4 days before foundation construction can begin.

What does stone column design cost for a project in Columbus?

Stone column design engineering fees for a typical commercial building or warehouse project in Columbus range from US$1,360 to US$5,460 depending on the number of columns, depth, and the complexity of the loading and settlement analysis required. This covers the design calculations, construction specifications, and post-installation quality assurance testing plan.
