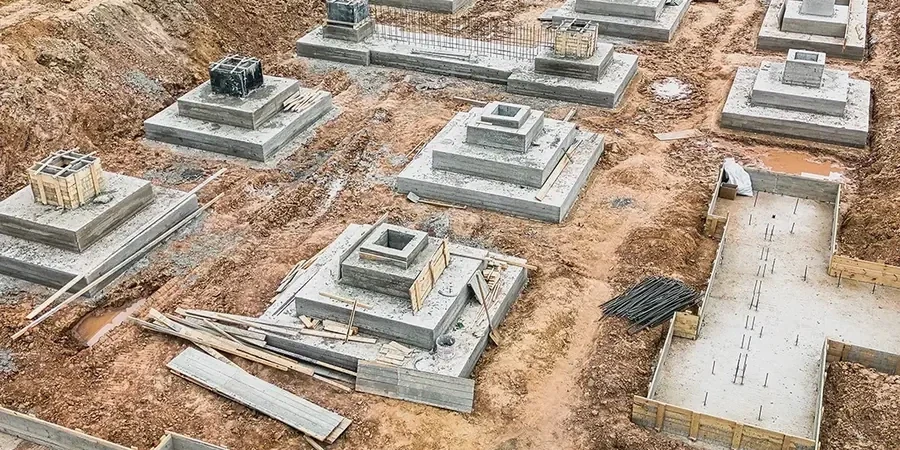

Pile Foundation Design for Columbus Georgia: Deep Foundations on Piedmont Soils

The subsurface contrast between downtown Columbus near the Chattahoochee River and the commercial corridors out toward Midland is striking. Along the river, alluvial deposits and deep bands of micaceous sand force us to look for bearing well below the scour zone, while projects situated on the residual silts and partially weathered rock of the Piedmont uplands often encounter refusal within 30 feet. That split defines how we approach pile foundation design here. A bridge abutment on the Phenix City side will demand a completely different pile setup—often driven H-piles socketed into rock—than a warehouse expansion on Veterans Parkway, where augered cast-in-place piles can do the job efficiently. We combine site-specific CPT testing with conventional boring data to map the depth to competent rock across the lot before selecting the pile type. This prevents the costly mistake of under-designing for the soft lenses that appear without warning in the Fall Line transition zone.

Saprolite can look like soil in a split spoon but still deliver end-bearing capacity above 20 ksf once the pile tip passes the weathered transition zone.

Process overview

The Fall Line geology that runs through Columbus creates a unique geotechnical profile: the northern third of the city sits on weathered mica schist and gneiss with a saprolite mantle that can be 15 to 40 feet thick, while the southern sections transition to Coastal Plain sands and clays. In our experience, the saprolite is the trickiest material to characterize because it retains the fabric of the parent rock but crumbles under standard penetration testing, often yielding SPT N-values below 10 in material that will still hold a pile tip once driven past the weathered crust. For pile foundation design we therefore run instrumented dynamic load tests on indicator piles early in the project, rather than relying solely on static formulas. Lateral capacity also becomes a governing factor when the upper 10 feet consist of soft alluvium with a stiffness degradation curve that shifts dramatically after heavy rain. On multiple jobs near the Columbus Civic Center, we have supplemented the geotechnical investigation with MASW surveys to obtain shear-wave velocity profiles through the soil column, which feeds directly into the p-y spring calibration for lateral pile analysis under seismic load combinations per ASCE 7.

Local context

The pile driving rigs we mobilize in Columbus are typically hydraulic impact hammers mounted on crawler cranes, sized to deliver between 30,000 and 80,000 ft-lb of rated energy depending on the pile section and the refusal criteria. When the hammer hits a shallow boulder or an unexpected ledge of unweathered gneiss within the saprolite zone, the entire crane can shudder, and the pile tip can suffer plastic deformation before we even register the blow count anomaly. That scenario has played out on sites near the Columbus Airport, where isolated corestones float in the residual soil matrix. Without a thorough pre-construction investigation that includes probe holes at every pile location, a single obstruction can delay the driving crew by two days while we mobilize a down-hole hammer to advance the socket. We also track groundwater levels obsessively in this city because the Chattahoochee River stage fluctuates by more than 15 feet during winter releases from the Buford Dam upstream, temporarily raising the phreatic surface across floodplain sites and reducing the effective stress that lateral pile capacity depends on.

Technical parameters

Parameter	Typical value
Typical pile types evaluated	Driven H-pile, ACIP, drilled shaft, micropile
Bearing stratum in north Columbus	Partially weathered mica schist, N-value refusal
Bearing stratum in river corridor	Sound rock below alluvium, often >60 ft depth
Lateral load analysis method	p-y curves calibrated with site Vs profiles
Seismic site class range	C to D per IBC/ASCE 7-22
Scour evaluation for river crossings	HEC-18 methodology, 100-year scour depth
Dynamic testing standard	ASTM D4945 with CAPWAP signal matching
Common pile diameter range	12.75 in. HP sections; 18-36 in. drilled shafts

Additional services

Deep Foundation Type Selection

Comparative analysis of driven piles, ACIP, drilled shafts, and micropiles based on subsurface conditions, cost per kip of capacity, and equipment access constraints specific to the Columbus urban grid and river corridor.

Static and Dynamic Pile Capacity Analysis

Capacity prediction using FHWA modified Gates formula, PDA testing with CAPWAP signal matching, and static load test design per ASTM D1143 for projects exceeding 500 kip design loads.

Lateral and Seismic Pile Design

Nonlinear p-y analysis incorporating site-specific Vs profiles and ASCE 7 seismic demands, with group efficiency factors computed for pile caps connecting more than four piles.

Scour and Downdrag Evaluation

Scour depth calculation per HEC-18 for bridge piers within the Chattahoochee floodway, and downdrag assessment where fill placement over compressible alluvium induces negative skin friction on the pile shaft.

FAQ

What is the typical cost range for a pile foundation design package in Columbus, Georgia?

Engineering fees for a standalone pile foundation design package in Columbus generally fall between US$1,620 and US$5,670, depending on the number of pile groups, the complexity of the soil profile, and whether dynamic load testing and CAPWAP analysis are included. A single-family residence on hillside saprolite will sit near the lower end; a multi-span bridge with scour analysis sits near the upper end.

How do you determine the depth to rock for pile sockets in the Fall Line zone?

We combine conventional SPT borings with CPT soundings and, where access allows, a limited number of probe holes drilled with an air-track rig at each column location. The CPT cone resistance curve is particularly useful here because it resolves thin seams of weathered rock that a standard split spoon will miss entirely.

Can you use augered cast-in-place piles in the saprolite soils of north Columbus?

Yes, and we frequently do. ACIP piles work well in the saprolite mantle as long as the grout pressure is maintained above 100 psi during extraction and the pile base is terminated at least two diameters into material with N-values above 30. We require a full-length rebar cage when lateral demands exceed 10 percent of the axial load.

What lateral load criteria do you apply for pile design near the Chattahoochee River?

For riverfront structures we run p-y analyses using LPILE or similar software with soil stiffness curves that account for the cyclic degradation of the upper alluvial clays during flood events. The controlling load combination usually comes from water pressure on the pile cap plus seismic inertial forces from the superstructure, not just wind.

How long does a pile foundation design take for a typical commercial building in Columbus?

Once the geotechnical investigation report is complete, we deliver a preliminary pile layout and type recommendation within two weeks. Final signed calculations and construction drawings typically require three to four additional weeks, assuming one round of coordination with the structural engineer and the general contractor.
