Underground excavations in Columbus, Georgia demand careful planning due to the region’s transition zone between Piedmont residual soils and Coastal Plain sediments. Local conditions often involve saprolitic materials, partially weathered rock, and a shallow water table near the Chattahoochee River, making ground behavior unpredictable. Our geotechnical analysis for soft soil tunnels addresses these challenges by evaluating face stability and settlement risks specific to mixed-face conditions. For urban cuts, geotechnical design of deep excavations integrates earth pressure models compliant with AASHTO and local building code requirements, ensuring support systems match the decomposed rock profiles common downtown.

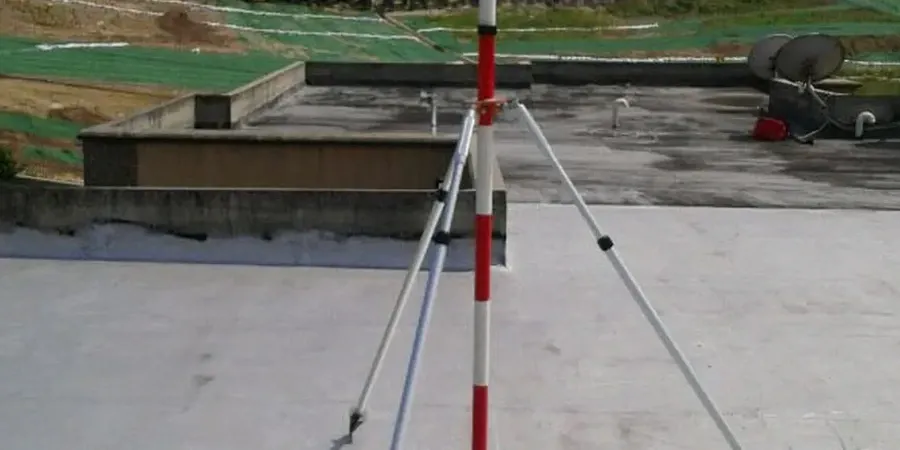

Typical projects range from utility tunnels and CSO storage shafts to cut‑and‑cover metro stations and basement construction in the Midtown redevelopment zone. Each requires phased verification to confirm design assumptions against actual ground response. Geotechnical excavation monitoring tracks deformation and pore pressure in real time, providing early warning for adjacent structures and enabling observational method adjustments. Whether advancing through soft alluvium or highly fractured gneiss, a tailored, monitored approach keeps Columbus excavations safe and on schedule.
Complete design of pre-stressed strand anchors for soldier pile and secant walls, including bond length calculation, lock-off sequence, and staged excavation modeling. Load-transfer curves are built from site-specific soil parameters, not generic tables.
Design of fully grouted passive bars for retaining walls, bridge abutments, and slope stabilization where movement must be tolerated. Includes shear key detailing and corrosion protection per PTI Class I or II for Piedmont residual soils.
Performance, proof, and extended creep tests executed with hydraulic center-hole jacks and digital loggers. Every anchor is lift-off tested to confirm lock-off load. Reports include load-displacement curves and commentary on bond zone behavior.
PTI DC35.1-14 Recommendations for Prestressed Rock and Soil Anchors, FHWA GEC No. 4 Ground Anchors and Anchored Systems, AASHTO LRFD Bridge Design Specifications, Section 11, ASCE 7-22 Minimum Design Loads for Buildings, IBC 2021 Chapter 18 Soils and Foundations, ASTM A416 Low-Relaxation Seven-Wire Steel Strand
Active anchors are pre-stressed after installation and locked off at a fraction of the design load before excavation advances; they actively restrain the wall from the start. Passive anchors are not tensioned—they develop resistance only when the retained ground deforms enough to engage the grout-to-soil bond, making them suitable for rock dowels and situations where some movement is acceptable.
The saprolite common in Columbus can retain the fabric of the parent schist but loses strength rapidly when disturbed or saturated. Micaceous silts present a particularly low grout-to-ground bond. We de-rate bond values based on SPT N-values and Atterberg limits, and extend creep test durations when mica content is high to identify time-dependent movement early.
PTI DC35.1 recommends performance tests on at least two sacrificial anchors per soil zone to validate design bond, proof tests on production anchors to confirm capacity, and creep tests when anchors are founded in fine-grained or micaceous soils. We follow the PTI acceptance criteria for total movement and creep rate, documenting every test with calibrated load cells and digital displacement transducers.
Anchor design and testing in the Columbus area typically ranges from $1,010 to $4,330, depending on the number of anchors, the complexity of the soil profile, and the extent of load testing required. A project with multiple soil zones and sacrificial performance tests will fall at the higher end of the range.
We serve projects across Columbus Georgia and its metropolitan area.
