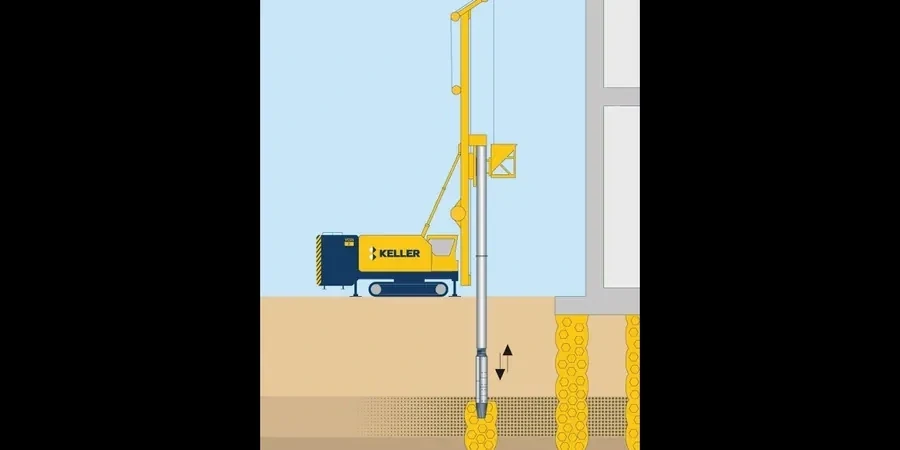

Vibrocompaction Design in Columbus Georgia: Getting It Right the First Time

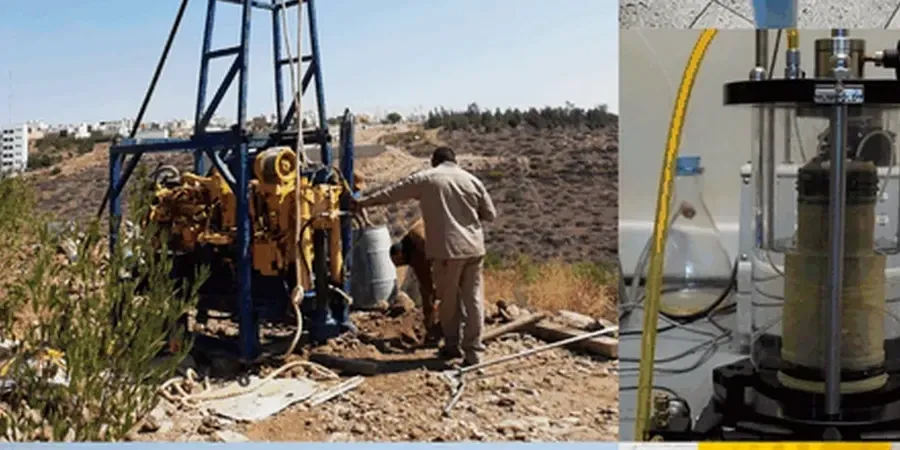

The most expensive mistake in Columbus ground improvement starts with a generic vibrocompaction design. A template approach fails here because the city straddles the Fall Line—the ancient boundary between the Piedmont and the Coastal Plain. North of Macon Road, you hit residual silty sands and weathered schist. South, toward Fort Benning, the profile shifts to looser alluvial deposits that liquefaction studies flag repeatedly. A vibrocompaction plan that does not account for this transition zone will leave untreated lenses. Then the contractor finds soft pockets during proof rolling, the schedule slips, and the owner asks why the design did not catch it. The solution is a site-specific design backed by pre-treatment CPT testing to map layer continuity and an SPT drilling program to calibrate relative density targets per ASTM D1586. With that data, the vibrocompaction grid and energy input are tailored to the actual subsurface, not a regional assumption.

In Columbus, the Fall Line geology creates two distinct compaction behaviors within a single site—your design specs must handle both.

Process overview

The IBC and ASCE 7-22 require ground improvement designs to be verified against measurable performance criteria, not just procedural checklists. In Columbus, the variable saprolite thickness—sometimes 8 feet, sometimes 35 feet—makes the vibrocompaction design particularly sensitive to probe spacing and withdrawal rate. A standard triangular grid at 7-foot centers works in the clean sands of the Coastal Plain segment, but in the Piedmont residual zone, the same layout often leaves untreated columns between probes. The design must specify a test section with at least three probe spacings, followed by post-treatment CPT testing to confirm that the target tip resistance—typically 120 to 150 tsf for medium-density sands—is achieved uniformly. The specification also needs to address water injection pressure in the Chattahoochee River floodplain deposits, where high fines content can smear the probe hole and reduce compaction efficiency. Without these local adjustments, the design looks correct on paper but underperforms in the ground.

Local context

Columbus sits in a moderate seismic zone, but the real risk for vibrocompaction design here is not earthquake shaking—it is differential settlement from heterogeneous fill. The city expanded rapidly in the 1960s and 1970s, and many commercial lots near Veterans Parkway were graded with uncontrolled fill over old stream channels. If the vibrocompaction design does not extend deep enough to penetrate these buried channels, the treated crust will bridge over soft zones. Five years later, the slab develops a diagonal crack that runs wall to wall. The design must include a pre-treatment boring program that identifies the bottom of the fill and any organic layers. Where the fill exceeds 20 feet, the vibrocompaction grid is often combined with stone columns at the deepest points to provide a drainage path and stiffen the mass. This hybrid approach, specified upfront in the design, prevents the expensive alternative of demolishing and re-compacting after failure.

Technical parameters

Parameter	Typical value
Typical probe type	Electric vibroflot, 30 kW to 130 kW
Grid pattern	Triangular, 6 to 10 ft spacing (site-specific)
Target relative density	70–85% per ASTM D4254
Post-treatment verification	CPT tip resistance ≥ 120 tsf
Water injection pressure	40–100 psi depending on fines content
Minimum treatment depth	Typically 25–35 ft in Columbus basin
Test section requirement	Minimum 3 probe spacings tested

Additional services

Site-Specific Vibrocompaction Design

We develop the probe grid, depth, energy input, and water pressure specification based on your CPT and SPT data. The design package includes cross sections showing treatment limits at the Fall Line transition zones common in Columbus.

Test Section Protocol and Oversight

We write the test section plan, specify the three probe spacings to be trialed, and oversee the post-treatment CPT verification. This step confirms that the design assumptions hold before full production starts.

Post-Treatment Verification Reporting

We compile the before-and-after CPT profiles, calculate the achieved relative density improvement, and prepare the compliance report for the building official and the project structural engineer.

Reference standards

ASTM D1586-18 (Standard Test Method for Standard Penetration Test), ASTM D2487-17 (Classification of Soils for Engineering Purposes), ASCE 7-22 (Minimum Design Loads for Buildings and Other Structures), IBC 2021 (International Building Code, Chapter 18 Soils and Foundations), ASTM D5778-20 (CPT Standard Test Method), FHWA-NHI-06-089 (Ground Improvement Methods)

FAQ

What does a vibrocompaction design cost in Columbus?

A complete vibrocompaction design package, including specification preparation, test section protocol, and verification reporting, typically ranges from US$1,420 to US$5,220. The exact figure depends on the treated area, the number of probe spacings tested, and the depth of treatment required.

How deep can vibrocompaction treat in Columbus soils?

In the Chattahoochee Valley deposits and Piedmont residual sands around Columbus, vibrocompaction is effective to depths of 25 to 35 feet. Deeper treatment is possible but requires a careful assessment of the overburden stress and the energy loss in the probe, which we verify with pre- and post-treatment CPT soundings.

Why do I need a test section for my Columbus site?

Because the Fall Line geology creates abrupt changes in soil behavior within a single property. A test section with multiple probe spacings lets us measure the actual radius of influence and adjust the grid before full production. Skipping this step is the main cause of underperformance we see in local projects.

What verification method do you specify for vibrocompaction?

We specify CPT soundings as the primary verification tool, per ASTM D5778. CPT provides a continuous profile of tip resistance and sleeve friction, which we correlate to relative density. SPT checks at selected depths serve as a secondary confirmation, but CPT gives the resolution needed to spot untreated lenses.

Can vibrocompaction design prevent liquefaction in Columbus?

Yes, in the sandier deposits south of the Fall Line, vibrocompaction is a proven liquefaction mitigation method. We design to a target relative density that meets the project’s design earthquake criteria per ASCE 7-22, and we confirm it with post-treatment CPT data analyzed using the NCEER/Youd-Idriss procedure.
