MASW & VS30 Shear Wave Velocity Testing in Columbus Georgia

The Fall Line shapes geotechnical practice in Columbus Georgia more than most realize. This geological boundary between the crystalline Piedmont and the softer Coastal Plain sediments creates abrupt transitions in subsurface stiffness across the city limits.
Shear wave velocity profiling becomes essential when a project site straddles residual Piedmont saprolite and down-dip Cretaceous sands within the same parcel. Our team runs MASW surveys that capture these lateral variations, delivering Vs30 values tied directly to ASCE 7-22 site classes. For deeper characterization below 30 meters, combining surface wave data with seismic refraction helps resolve the bedrock interface where saprolite grades into fresh gneiss. The Muscogee County permitting process references the IBC, and a defensible Vs30 measurement often determines whether Site Class C or D applies to a foundation design.

A single MASW line 46 meters long resolves the Vs30 value that governs the seismic design category for the entire structure per IBC Table 1613.2.3.

Process overview

The near-surface geology of Columbus presents a layered velocity profile that changes significantly within short distances. North of the Fall Line, weathered schist and gneiss yield Vs30 values typically falling in the 360–760 m/s range, corresponding to Site Class C. South of the line, younger alluvial terraces and Tuscaloosa Formation sands can dip below 260 m/s, pushing sites into Class D territory under ASCE 7 criteria.

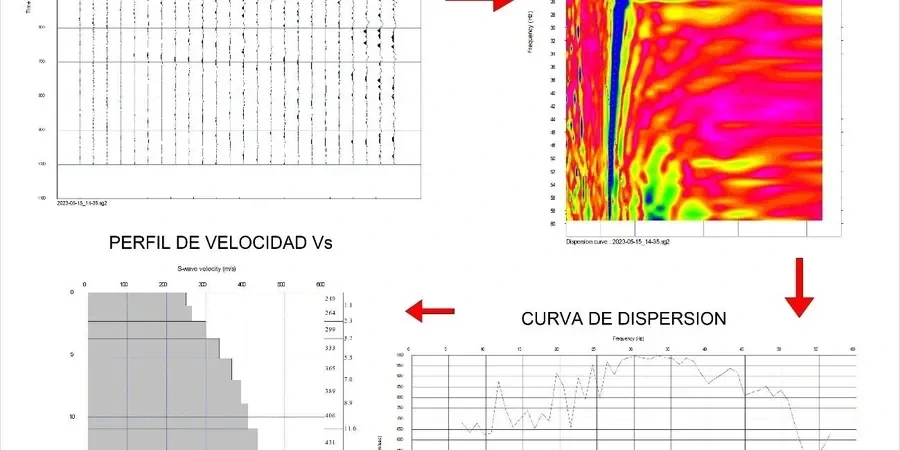

Our MASW acquisition uses a 24-channel seismograph with 4.5 Hz geophones spaced to resolve the upper 30 meters with sufficient vertical resolution. Dispersion curve extraction follows the phase-shift method, and inversion is constrained by available boring logs where clients have performed SPT drilling nearby. The resulting 1D shear wave velocity profile is averaged using the travel-time method prescribed in ASCE 7 Section 20.4, not the simpler arithmetic mean that underestimates site amplification.

Local context

A 24-channel Geometrics Geode seismograph connected to a spread of low-frequency geophones deployed on asphalt or compacted fill is the standard field setup. The sledgehammer source generates Rayleigh waves that travel through the upper 30 meters of the subsurface, and the dispersion characteristics of those waves encode the stiffness layering.
In Columbus, we encounter practical challenges with cultural noise from urban traffic along Veterans Parkway and from railroad corridors near the Chattahoochee River industrial zones. Coherent noise from passing trains can contaminate dispersion images if acquisition timing is not coordinated. Site classification errors propagate directly into the seismic design category, potentially triggering a full Class D spectral acceleration envelope when Class C would have applied with proper Vs30 measurement. The cost differential in lateral force-resisting system design between these two classes frequently exceeds the survey budget by an order of magnitude.

Technical parameters

Parameter	Typical value
Geophone array	24-channel, 4.5 Hz vertical component
Source type	10 kg sledgehammer with strike plate
Depth of investigation	30 meters below ground surface (standard Vs30)
Dispersion extraction method	Phase-shift frequency–velocity transform
Inversion algorithm	Non-linear least squares, layered earth model
Vs30 averaging method	Travel-time weighted (ASCE 7-22 §20.4)
Reporting standard	IBC 2021 / ASCE 7-22 Site Classification
Typical line length	46 to 69 meters for 30 m target depth

Additional services

Vs30 Site Classification Package

One to three MASW lines with dispersion analysis and travel-time Vs30 computation. Final deliverable includes a signed engineering report with ASCE 7 site class determination, spectral acceleration parameters from the USGS hazard tool, and a discussion of site amplification factors applicable to structural design.

2D Shear Wave Velocity Cross-Section

Multiple overlapping MASW spreads processed with lateral constraint to produce a continuous velocity section. Applied where site stratigraphy is expected to vary laterally across the building footprint, such as parcels crossing the Fall Line boundary or adjacent to Chattahoochee River terrace scarps.

Reference standards

ASCE 7-22 (Minimum Design Loads and Associated Criteria for Buildings and Other Structures), IBC 2021 Section 1613 (Earthquake Loads – Site Classification), ASTM D4428/D4428M-14 (Standard Test Methods for Crosshole Seismic Testing – referenced for geophone coupling), NEHRP Recommended Provisions (Seismic Provisions for New Buildings, FEMA P-1050)

FAQ

What is the typical turnaround time for a MASW survey and Vs30 report in Columbus?

Field acquisition for a single MASW line takes approximately half a day including setup and calibration. Dispersion analysis and inversion modeling require another two to three business days. Final reporting with signed engineering certification is typically delivered within five to seven business days after field work completion, though we can accommodate shorter deadlines for projects on critical path.

Does the City of Columbus building department accept MASW for site classification instead of SPT or CPT?

Yes. The Columbus Consolidated Government enforces the IBC, which recognizes shear wave velocity as the primary basis for site classification per ASCE 7 Table 20.3-1. MASW is a well-established non-invasive alternative to downhole or crosshole methods, and our reports reference the travel-time averaging procedure explicitly described in ASCE 7-22 Section 20.4.

What does a MASW / Vs30 survey cost for a typical commercial project in Columbus?

For a standard commercial site requiring one to three MASW lines with full Vs30 analysis and an ASCE 7 site classification report, project fees typically range from US$1,480 to US$3,010 depending on the number of spreads, site accessibility, and the level of cultural noise requiring additional processing. We provide a fixed-price proposal after reviewing the site location and project scope.
